Inbound Routes

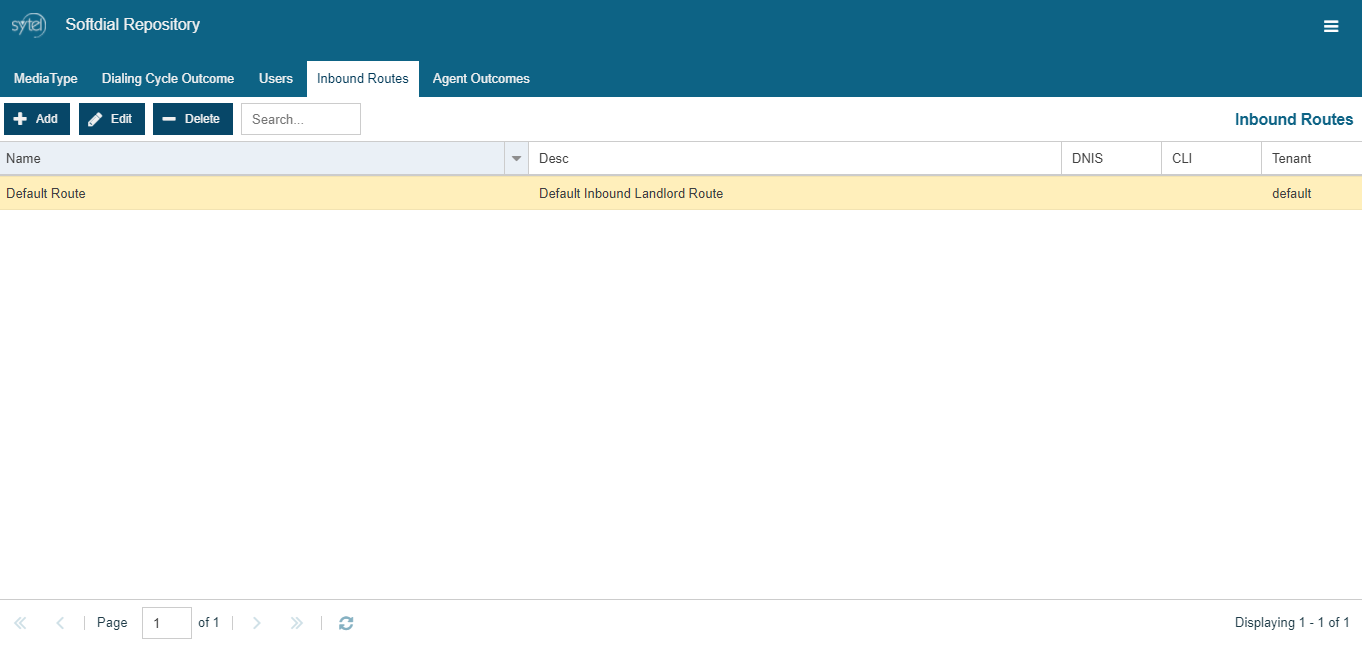

The Inbound Routes tab shows a list of all configured landlord-level inbound routes (Fig. 1).
On an incoming media session arriving, the landlord routing table is scanned to determine which tenant is the destination for the media transaction. The Landlord Route Editor allows selection of a destination tenant for a given source and destination pattern (Fig. 2).
When New or Edit is clicked, the landlord inbound route properties window is shown (Fig. 2):
Fig. 2 - Editing a Landlord Route
The path in the Repository for landlord routes is Name Spaces/_config/Inbound Route.
This differs from the old Incoming Call Route. The old Incoming Call Route table is preserved for migrating from V10.6 to V10.7. This will have to be done manually.
Once the tenant is selected, the Tenant Routing Table logic is followed to determine the destination address for the media session. As per 10.6 Landlord Routing rules, this may be a queue or an endpoint.
See also tenant-level Inbound Routes.
