Properties Pane

On the right side of the Scripter Page Editor window is the Properties pane. This allows you to modify the properties of any controls you have used on your screen (Fig. 1).

Fig. 1 - Properties 1

To reveal the properties available to a particular control in the Properties section of the window, click on either

a control listed in the Outline section, or
the actual control in the Screen area of the window

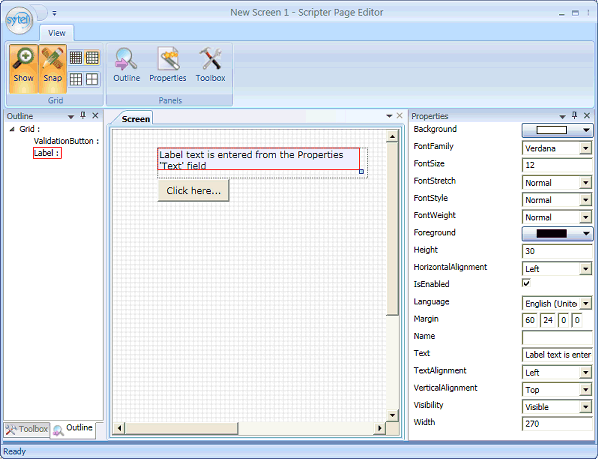

Fig. 1 shows the Text field being set for the Label. The Label's Name, Description and style may also be set here.

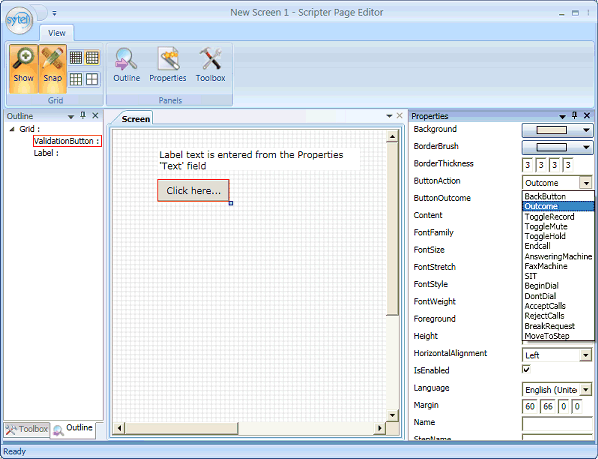

Fig. 2 shows Outcome being selected from the list of available actions for the ButtonAction field.

Fig. 2 - Properties 2

This is the action to be performed when the button is clicked by the user. If the Outcome action is selected, the ButtonOutcome to be used to end the step may also be specified. This outcome code can then be used to direct the script flow as required.

Do not confuse the Step Outcome mentioned above with Dialing Cycle Outcome Codes - these are not related in any way.
