Play TTS and Capture

1.	Speech Text	(Mandatory)	Text to be converted into an audio message . This may be a combination of plain text and field data (as shown in Fig. 1).
2.	Digits Low	(Optional)	The minimum number of digits allowed
3.	Digits High	(Optional)	The maximum number of digits allowed
4.	Valid Digits	(Optional)	The valid digits. e.g: if the menu contains only 5 options, valid digits may specify that only the values 1,2,3,4 or 5 will be accepted. Entering any digits other than these will return a Fail outcome
5.	Terminating Digit	(Optional)	The terminating digit. This will allow Softdial CallGem™ to stop capturing digits after the terminating digit is entered
6.	Capture Timeout	(Optional)	The number of seconds to wait for the user's input

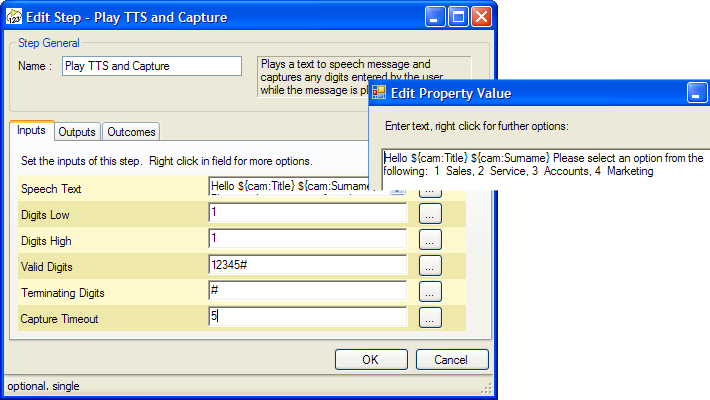

Fig. 1 - Play TTS and Capture - Inputs

1.

Digit Data

Stores the captured digits to the script variable specified here

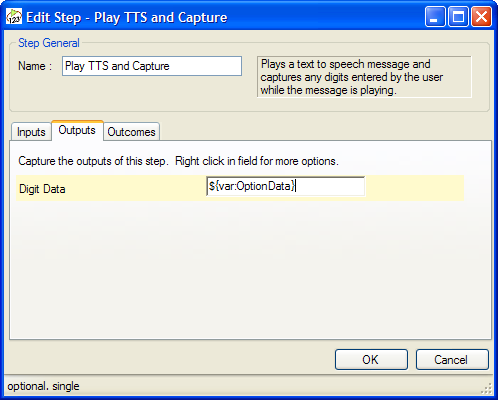

Fig. 2 - Play TTS and Capture - Outputs

By default there are 5 outcomes (Fig. 3):

1.	Success
2.	Timeout
3.	Aborted
4.	Call Ended
5.	Fail

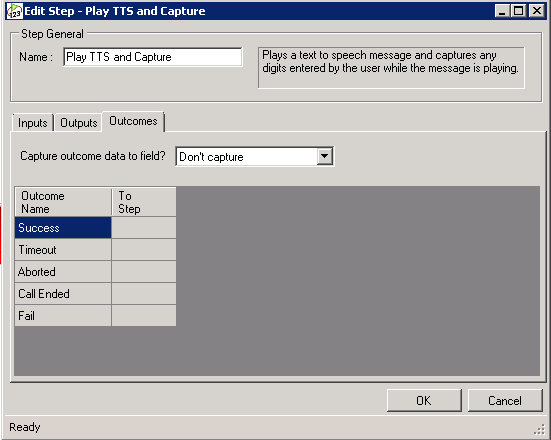

Fig. 3 - Play TTS and Capture - Outcomes

With this component, you can also create your own outcome fields. For an example, see Play Recording and Capture.
