Toggle Hold
From V10.6.112 - Used to request that a call to be either
- put on hold, or
- retrieved from hold
Inputs
| 1. | On/ Off | (Mandatory) | On - puts the call on hold Off - retrieves the call from hold |
| 2. | Bit Flag | (Optional) | From V10.5.178 and V10.6.330 - determines which connection is to be put on hold. For details refer to Call Hold and Mute. Relates to the Who (WH) parameter of the Request Hold [RH] message |

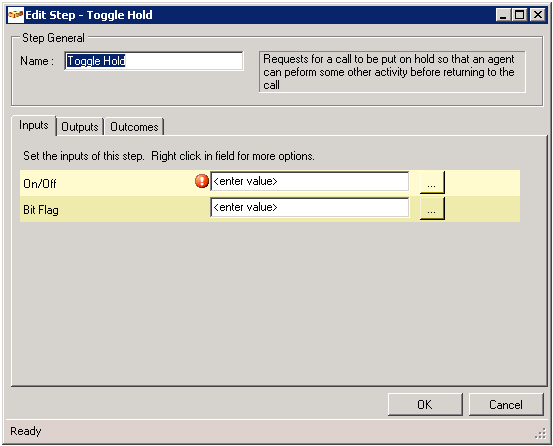

Fig. 1 - Toggle Hold - Inputs
Outputs
None
Outcomes
| 1. | Next |

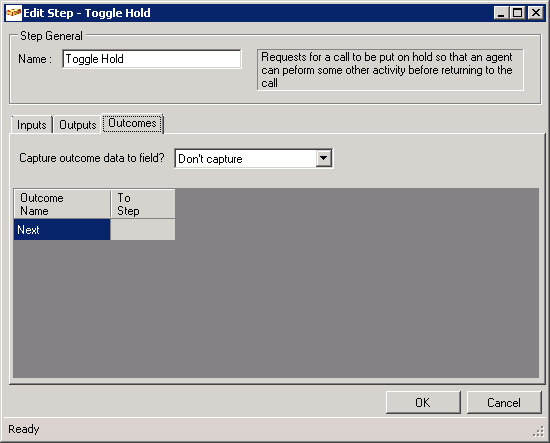

Fig. 2 - Toggle Hold - Outcomes
