Extract XML
Used to extract XML into separate fields.
Inputs
| 1. | doc | (Mandatory) | The XML document that will be used for the extract operation |
| 2. | XPath Query 1 | (Mandatory) | The XPath Query statement |
| 3 | XPath Query 2-10 | (Optional) | The XPath Query statements |
| 4. | Use Root Node Namespaces | (Optional) | Whether to include the namespaces from the document's root node elements, so that they can be used in the XPath queries |
| 5. | Namespace Prefix | (Optional) | A namespace prefix - use together with Namespace Uri, so that it can be used in XPath queries |
| 6. | Namespace URI | (Optional) | A namespace URI - use together with Namespace prefix, so that it can be used in XPath queries |

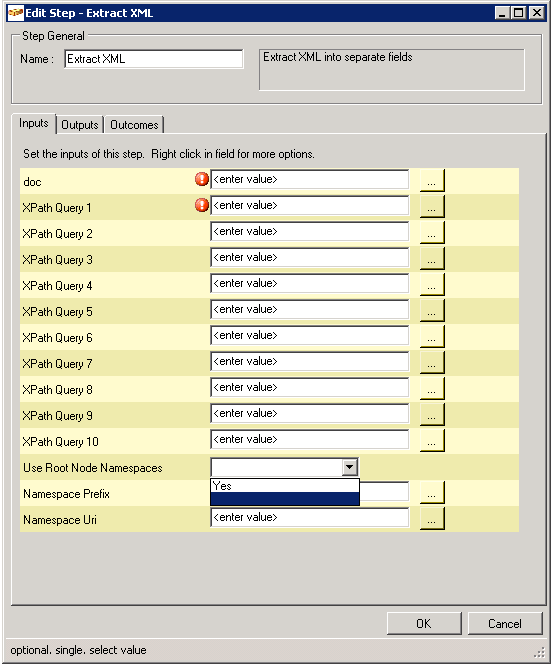

Fig. 1 - Extract XML - Inputs
Outputs
| 1. | Result 1 | (Mandatory) | The result of the Input XPath Query 1. |
| 2. | Result 2-10 | (Optional) | The results of the Input XPath Queries 2-10. |

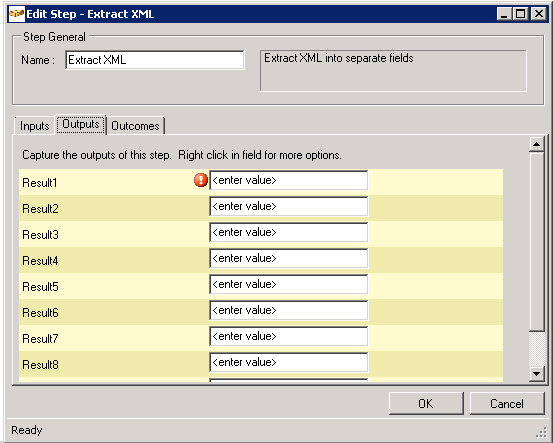

Fig. 2 - Extract XML - Outputs
Outcomes
| 1. | Next | The SQL statement was executed successfully |
| 2. | Fail | An error was returned from Softdial CallGem™ |

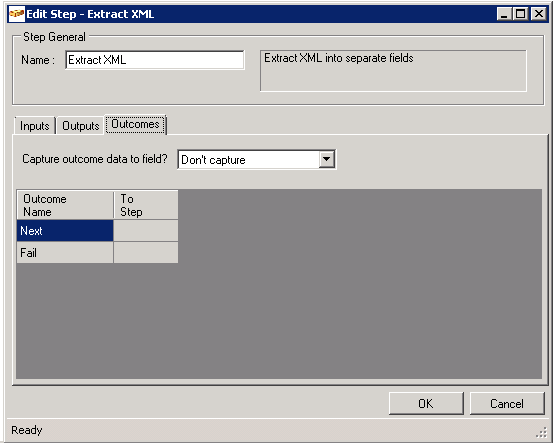

Fig. 3 - Extract XML - Outcomes
