XSLT Transform
Used to transform an XML document to another based on XSLT.
Inputs
| 1. | Xslt Transform document | (Mandatory) | The XSLT transform document that will be used for the transform operation |
| 2. | Xml input document | (Mandatory) | The XML document that will be transformed by the XSLT document |
| 3. | Parameter Name 1-5 | (Optional) | The parameter name to use for the transformation |
| 4. | Parameter Namespace 1-5 | (Optional) | The parameter namespace to use for the transformation |

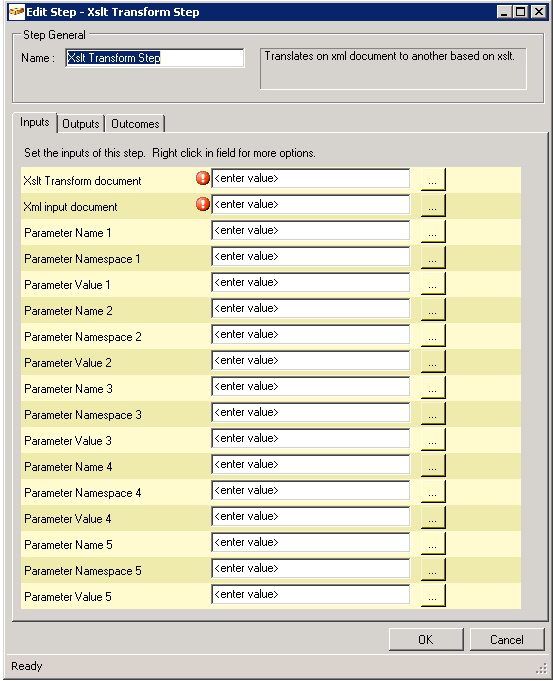

Fig. 1 - XSLT Transform - Inputs
Outputs
| 1. | Xml output document | (Mandatory) | The resulting XML document after transformation |

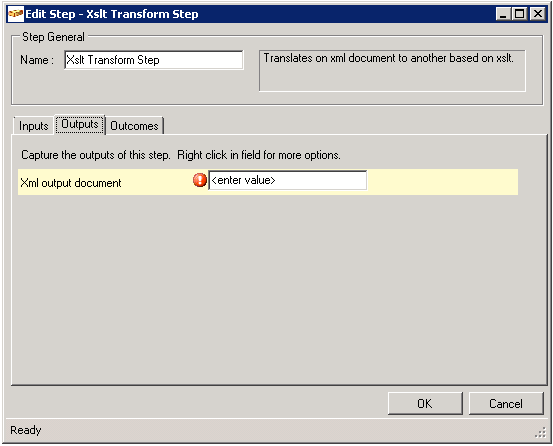

Fig. 2 - XSLT Transform - Outputs
Outcomes
| 1. | Next | The transformation was executed successfully |
| 2. | Fail | An error was returned from Softdial CallGem™ |

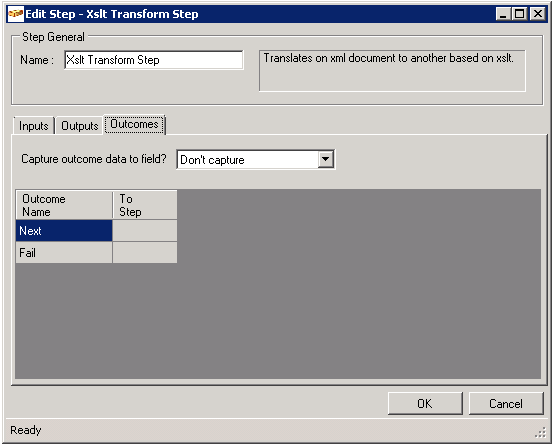

Fig. 3 - XSLT Transform - Outcomes
