Delete File

Inputs

1.

File name

(Mandatory)

The file path where the file exists. If a relative file path, the file will be accessed from a script directory. Also accepts absolute file paths.

2.

Use Script Root

(Optional)

Use this to force a subscript to access a file in the main script directory. Only applicable when the File name is a relative file path.

Select either

Yes - the relative File name is always appended to the path of the main script
No (default) - the relative File name is appended to the path of the current script

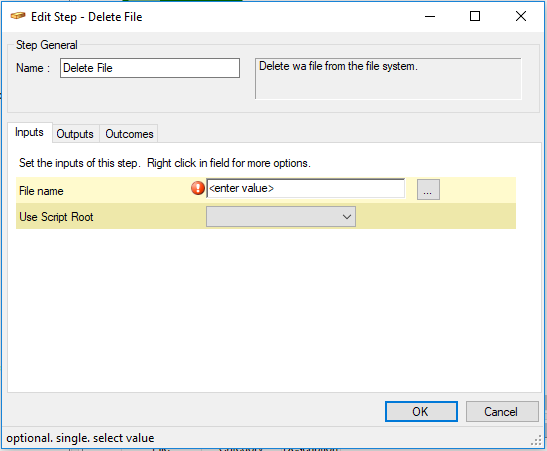

Fig. 1 - Delete File - Inputs

Outputs

None

Outcomes

2.	Next	Delete File succeeded
1.	Fail	Delete File failed

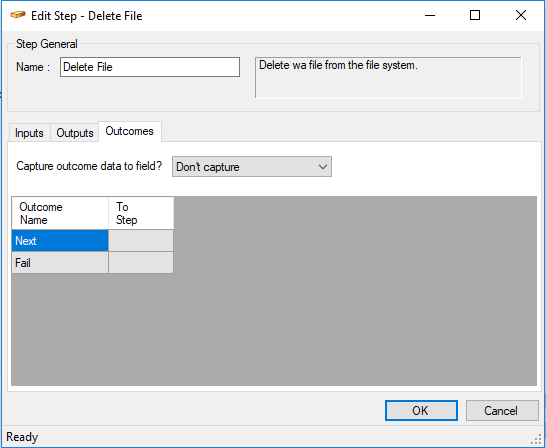

Fig. 2 - Delete File - Outcomes
