Exit Script
Indicates the end of the script.
Any number of Exit Script steps may be used in the script, but each must have an assigned Exit Code (see Inputs below).
Usage in subscripts
If used to end a subscript in which script fields have been used, the script fields may be copied over to the receiving script by setting Copy script fields on exit to true (see Inputs below).

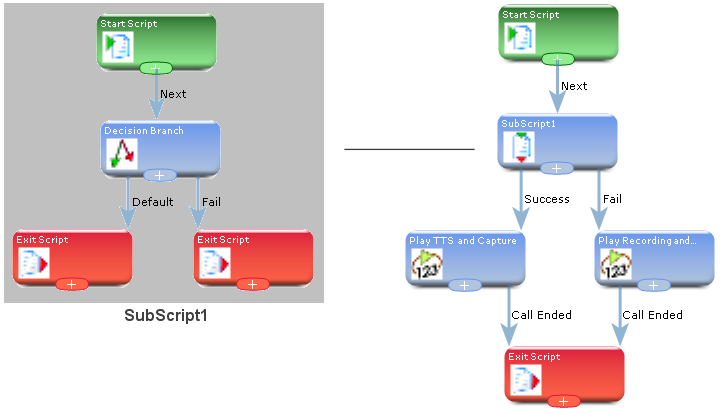

One or more Exit Script steps in a subscript can be used to direct script flow in the parent script or another subscript (see Fig. 1).
Inputs
| 1. | Exit Code | (Mandatory) | Assigns an Outcome Value for this step |
| 2. | Copy script fields on exit | (Optional) | true or false (default). See Usage in Subscripts above |

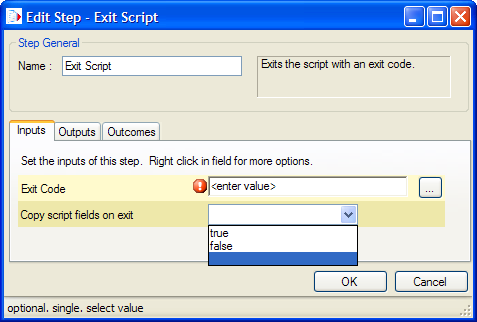

Fig. 2 - Exit Script - Inputs
Outputs
None
Outcomes
Not used. The Outcome Value for this step is the Exit Code assigned in Inputs (above).
