Softdial Scripter™ - Step Library

String Length

Used to count the numbers of characters in a string.

A character is any letter or number, space character or special characters such as %, ^, &, *, etc.

ClosedInputs

1. The Input String (Mandatory) May be a System, Campaign or Script field (Fig. 1).

In this example, the input string is a UK Postcode which must be less than 8 and more than 6 characters.

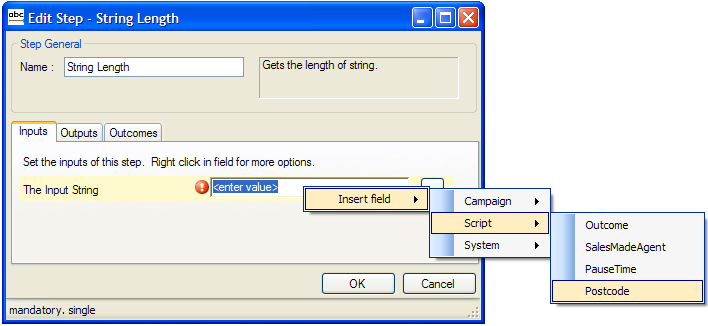

String Length - Inputs

Fig. 1 - String Length - Inputs

ClosedOutputs

1. Length The length of the Input String.

In this example, the value is captured to the Script variable PostcodeLen (Fig. 2).

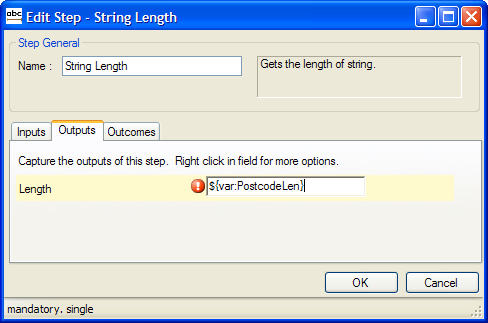

String Length - Outputs

Fig. 2 - String Length - Outputs

ClosedOutcomes

1. Next

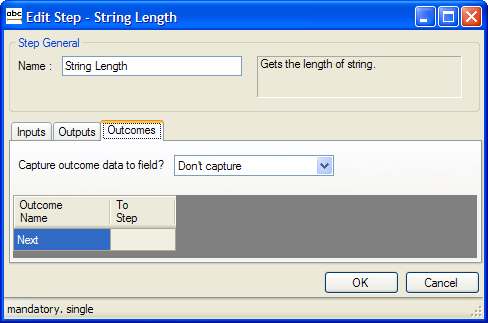

String Length - Outcomes

Fig. 3 - String Length - Outcomes
