Display Tab

The Display tab governs how the selected data is displayed within the widget. The tab's contents vary depending on the type of widget selected.

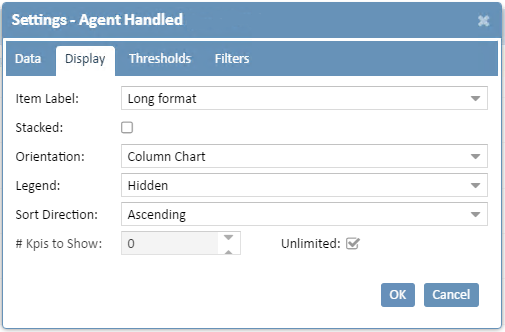

Fig. 1 - Display Settings (for a column chart)

Fig. 2 - Display Settings (for a table)

The Display tab is not available to the following widget types:

IFrame
HTML
Summary report
Detail report

Possible settings are described below.

Show display settings

Setting	Applies to	Details
Item Label:	line, area, bar, column, area, pie, table	Whether the label (e.g. header for a table column, label for a chart column) is shown in long or short format. The text of both label formats can be viewed either in the tables available in the Reporting Data section, or in Reporter 5, in The KPIs Dialogue
Widget title:	HTML, IFrame	The title for the widget.
Axis Range:	line, area	Allows the user to set the minimum and maximum (numerical) values for the value axis, including negative numbers, e.g. if the KPI values are 561, 542, 589, 498, then setting a minimum of 450 and a maximum of 600 will enable you to compare values more accurately.
Stacked:	bar, column, area	Checked - stack series (one above another) Unchecked - display series side-by-side
Orientation :	bar, column	Display as Column Chart - vertical bars, or Bar Chart - horizontal bars
Legend:	bar, line, area, pie chart	Hidden - do not display legend Top/ Bottom/ Left/ Right - display legend at this position within the widget
Scale type:	bar, line, area	Logarithmic scale - Displays the data in a non-linear scale with irregular increments, preferably used when the data is expected to produce a large range of values Numeric scale - Displays the data in a linear scale with regular increments, preferably used when the data is expected to produce a small range of values
Items per page: Show Pagination:	bar, pie chart, line, area, template	Controls how many items to display at once and whether to enable the paging toolbar at the foot of the widget. Selectable values are: 1, 5, 10, 25, 50, 100, 500, 1000, 5000.
Sort By: Sort Direction:	bar, column, pie chart, template	Sort the data by the selected KPI Order by either Ascending, Descending or None.
Show summary:	table	Controls display of the summary for the table: checked - summary will be shown unchecked - summary will be hidden
Show labels:	big number	Will display KPI labels if checked. Controls display of the KPI labels above each value: checked - labels will be shown unchecked - labels will be hidden
Columns:	big number	KPIs will be aligned into 1, 2, 3, 4 or 5 columns.
Template:	template	The text for the template. For more details, see the Sencha documentation.
Source:	IFrame	The URL of the external website.
HTML:	HTML	Any valid HTML markup entered in this field will be rendered inside the widget area. Some invalid markup (e.g. <b>Hello</h1>) will be corrected in rendering (e.g. <b>Hello</b>). Invalid markup that could not be corrected will not be rendered.
